Features :

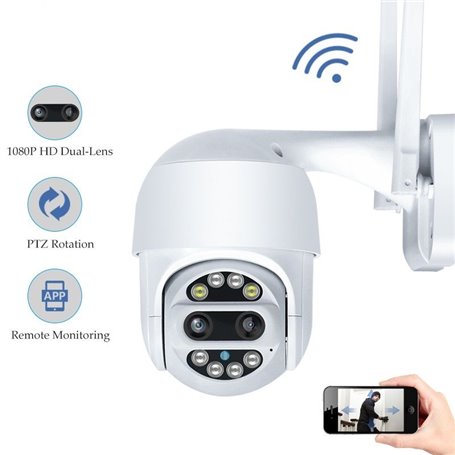

1080P HD 2MP Camera
Two lenses : 3.6mm lens 90°view angle, 12mm lens
Build in LEDS IR Distance 50M
Two way audio communication
802.11b/g/n 2.4G Wifi
355°Pan/55°Tilt
Cloud storage
Max 128GB TF card
Amazon Cloud
Motion detection
Send message to mobilephone
APP : YCC365PLUS
Specifications :
AJ-GK7205_SENSOR-38MAIN VI.O AJ-7205-2X2053-COMS-V1.1
System Industrial grade embedded microcontroller GK7205
Image Sensor GC2053×2
Standard sizes Motherboard: 38*38mm sensor board: 60*38mm
Effective Pixels 2M pixels
Sensor 0.1Lux/F1.2 (color); 0.01Lux/F1.2 (black and white)
Day and night conversion mode Automatic ICR infrared filter
Digital noise reduction Support 3D digital noise reduction
Near and far focus Support 3.6mm-12mm lens
PTZ control Support 232 serial port
Monitor/Intercom Support
Double light Support
Audible alarm Support
Compression standard
Video compression standard H.265
H.265 encoding type HEVC codec MP
Video compression code rate 32 Kbps~2Mbps
Audio compression standard G.711a
audio por 1 input, supports microphone or pickup input; 1 output, supports connection of headphones or amplifier
Image output
Resolution HD: 1920*1080 SD: 640*352
Photosensitive area 2 million 1/3"
AD sampling accuracy 12bit
Color to black standby
Network features
Storage function Local TF storage/cloud recording
WIFI standard IEEE802.11b/g/n
Smart alarm Motion detection, sound detection
TCP/IP, UDP, P2P, DNS, DHCP, RTSP
Interface Protocol ONVIF agreement
Platform docking Support P2P and forwarding (use forwarding after purchasing cloud services, ordinary users use P2P)
General functions One-key reset, dual stream, heartbeat, mirror image, multiple people watching at the same time.
power supply DC 12V power input interface
Motherboard power consumption 130mA±10
Packing list :
1 x IP Camera 1080P
1 x User Manual
1 x Screws and wall bracket
1 x DC 5V Power Supply
- Weight
- 400g
